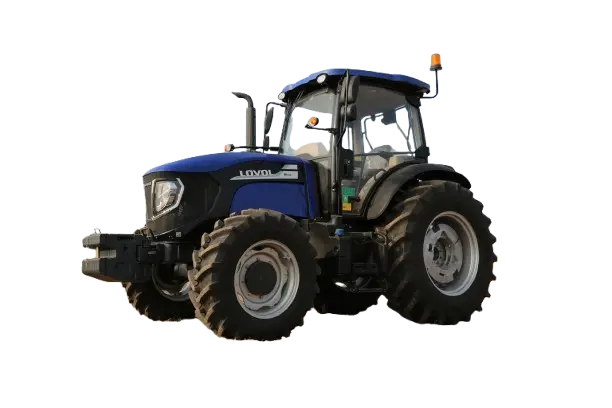

M1104 Utility Tractor
A powerful utility tractor designed to tackle the most demanding tasks.
- Doosan engine: 4-cylinder 3.4L turbocharged engine with a high-pressure common rail system, delivering excellent power and minimal noise.
- 3-axis transmission: The innovative three-axis transmission achieves a balance between compact size and structural strength.
- Robust and durable performance: Reinforced design, suitable for high-demand agricultural machinery and tools.
Ideal For: Medium-sized livestock farms and tillage farms.
Specifications
| Engine Model | Doosan D34/4 cylinders/3,4L |
| Rated power(kw/hp) | 85,7/116 |
| Emission Standard | Stage V |
| Gears | 18F+18R |
| Type of transmission | Mechanical Transmission |
| Total unladen weight(kg) | 4100 |
| Speed Range | 0.39-37.54 |
| Hydraulic pump capacity(L/min) | 35+55 |
| Wheel Base(mm) | 2370 |
| Front Wheels | 380/70R24 |
| Rear Wheels | 520/70R34 |
